Products > Growatt SPH 4000-10000TL3 BH-UP

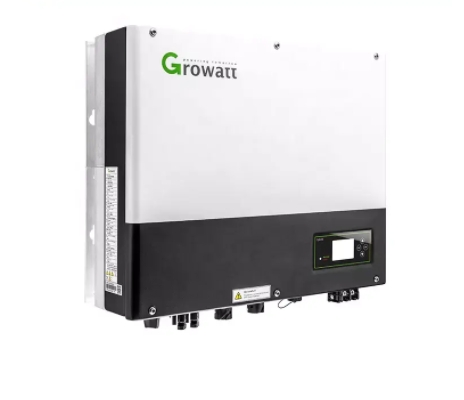

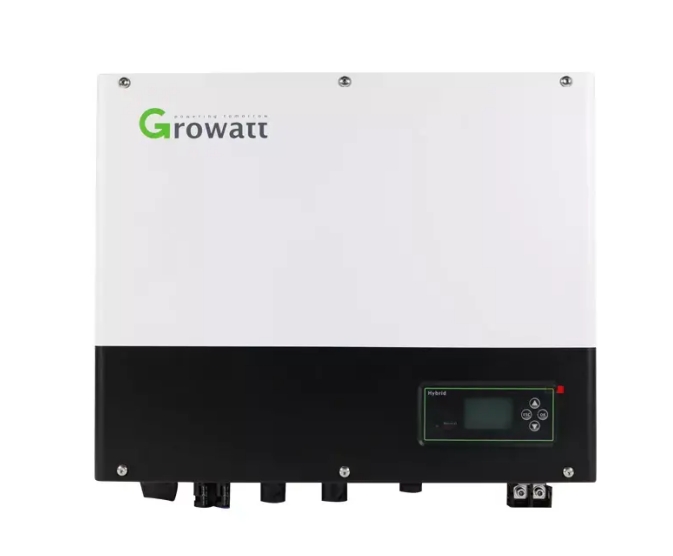

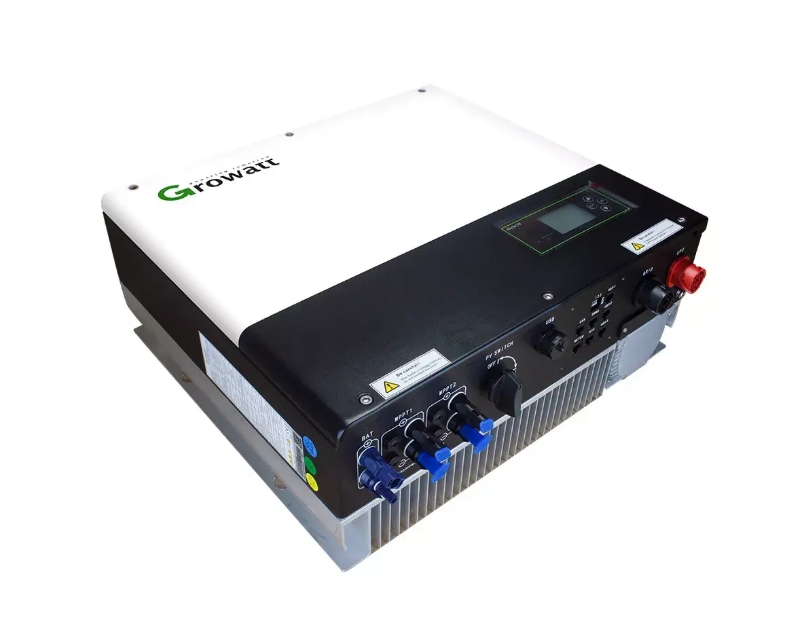

Growatt SPH 4000-10000TL3 BH-UP

  • 微信截图_20241017150823.png
  • 微信截图_20241018100321.png
  • 微信截图_20241018100305.png
  • 微信截图_20241018100438.png
    • 1
    • 2
    • 3
    • 4
Leading Functions
- UPS function, 10ms transition
- 100% three-phase imbalance output
- Smart phase-level power control
- Type II SPD on DC and AC side
High Yields
- DC/AC ratio up to 1.5
- Dual MPP trackers
- Max. efficiency 98.2%
System Flexibility
- Support lithium and lead-acid battery
- VPP interface ready
- Smart load control via dry contact
ItemSolar Inverter
Place of OriginChina
Brand NameGrowatt
Model NumberSPH 4000-10000TL3 BH-UP
Input Voltage1000V
Output Voltage230V/400V (310~476V)
Output Current6.1A-15.2A
Output Frequency50/60 Hz
Size505/453/198mm
Inverter Efficiency98.20%
 CertificateCE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11，EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS 4777 , G98, TOR Erzeuger
Warranty5 years /10 years
Weight30kg
ProtectionIP65
Inverter typeSingle phase
